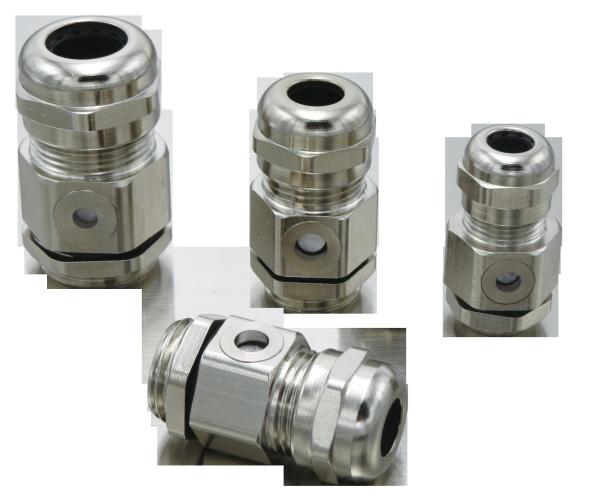

Rubber Permeable Type Air Breather Valve Cable Gland/Ventilation Cable Gland
Material
sealing nut: nickel plated brass
plastic claw: Nylon V2
Seal:NBR
protection degree: in the specified cable outer diameter and the appropriate o-ring Protection degree can reach IP68,the waterproof degree can reach IP68.
Temperature Range
-40°C to 100°C, short time to120°C
Characteristics
1) strong antioxidation, no rust
2) do not release harmful substances, pollution-free
3) the use of stainless steel, high hardness
4) a temperature of 120 degrees Celsius in a short period of time in a static environment.
| Item | Range | GL | Thread O.D. | Joint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 27 | 16 | HX-NFM12 |
| 4-8 | 8 | 12.0 | 27 | 16/14 | HX-NFM12-8 |
| M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NFM16-6 |
| 4-8 | 8 | 16.0 | 27 | 18 | HX-NFM16 |
| 5-10 | 8 | 16.0 | 27 | 20/18 | HX-NFM16-10 |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NFM18 |
| M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NFM20-10 |
| 6-12 | 8 | 20.0 | 32 | 22 | HX-NFM20 |
| 10-14 | 8 | 20.0 | 32 | 24/22 | HX-NFM20-12 |
| M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-12 |
| 10-14 | 9 | 25.0 | 35 | 24/27 | HX-NFM25-14 |
| 12-16 | 9 | 25.0 | 35 | 27 | HX-NFM25-16 |
| 13-18 | 9 | 25.0 | 35 | 30/27 | HX-NFM25-18 |
| M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NFM32-18 |
| 15-22 | 10 | 32.0 | 54 | 35 | HX-NFM32 |
| 18-25 | 10 | 32.0 | 54 | 40/35 | HX-NFM32-25 |
| M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NFM40-25 |
| 22-30 | 11 | 40.0 | 50 | 45 | HX-NFM40-30 |
| 25-33 | 11 | 40.0 | 52 | 50/45 | HX-NFM40-33 |
| M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NFM50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NFM63 |
| 42-52 | 14 | 63.0 | 55 | 78/68 | HX-NFM63-52 |
| Customizable PG/G/NPT thread |
Application scope
Outdoor lighting, automobile, communication equipment,sports equipment precision electronic equipment, security, solar pv and other industries.
