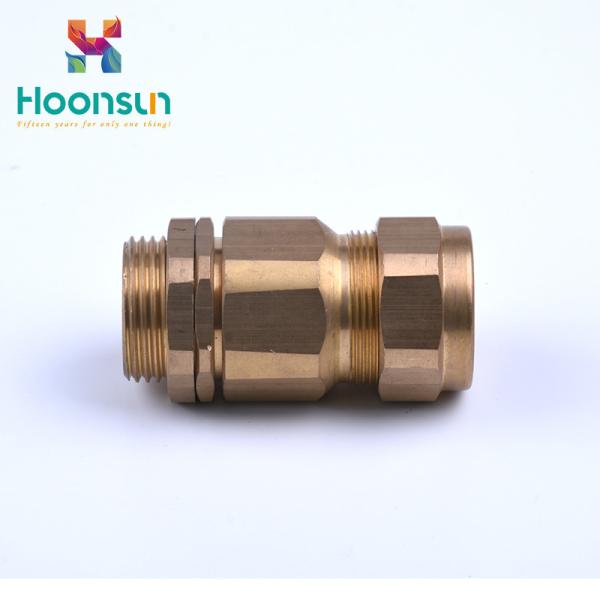

Clamp Sealing Goint Explosion Proof Cable Gland Ul94V 0 Fireproof SS304 / SS316L
Product: EX Clamp Sealing Goint Cable Gland
Material: Brass/ss304/ss316
Suface treatment: nickel plating,passivation
Sealing materials: silastic,Neoprene
Explosion-proot mark: Exd IIC Gb
Fireproof classification: UL94-V0
Protecyion grade: IP66-10bars
Ambinent temperature: Static from - 60 ℃ to 100 ℃,short time to 120℃
Product characteristics:
The metal part is made of high quality brass material, the outer layer is electroplated nickel or passivation on the outer layer. The explosion proof grade reaches UL94-V0, the waterproof grade reaches IP66. All the seals adopt environmental quality silicone rubber, neoprene, excellent quality, exquisite workmanship, waterproof, dust proof, anti aging, acid alkali resistance, alcohol and general solvent. High end appearance design, simple and beautiful appearance, with high quality metal shell protection, durable and durable life, suitable for high temperature, high pressure, explosive environment.
| Metric thread(M) | Inch screw threads(G) | Outer diameter cable(mm) | L1 Thread length (mm) | L length(mm) | L2 length(mm) | EX-mark | Protection level |
| Outlet A | incoming line B |
| M16×1.5 | — | 8 | 7—15 | 15 | 68 | 85 | Exd IIC Gb | Ip66 |
| M20×1.5 | G1/2 | 8 | 7—15 | 15 | 68 | 85 |
| M25×1.5 | G3/4 | 13 | 11—20 | 15 | 72 | 87 |
| M32×1.5 | G1 | 16 | 14-25 | 17 | 77 | 92 |
| M40×1.5 | G1 1/4 | 21 | 19-33 | 17 | 77 | 95 |
| M50×1.5 | G1 1/2 | 25 | 24-41 | 17 | 95 | 100 |
| M63×1.5 | G2 | 32.5 | 30-50 | 17 | 99 | 110 |
| M75×1.5 | G2 1/2 | 44 | 38-64 | 17 | 113 | 127 |
| M85×1.5 | G3S | 52 | 47-74 | 18 | 113 | 127 |
| M90×1.5 | G3 | 52 | 47-74 | 18 | 127 | 137 |
| M100×1.5 | G4S | 64 | 57-90 | 18 | 127 | 137 |
| M110×1.5 | G4 | 72 | 62-103 | 18 | 127 | 137 |
Product characteristics
1. selection of top copper material, exquisite workmanship
The metal part is made of high quality brass, and the outer layer is made of environmental protection electroplating nickel. The waterproof grade reaches IP68. All the seals are made of new high quality rubber new material. The quality is excellent and the work is exquisite.
2. composite inner core structure has stronger waterproof performance
The long inner core has stronger insulation ability, protection cable line, professional waterproof grade, new high quality nylon raw material, special clamping claw design, waterproof, dustproof, anti aging, acid alkali, alcohol and general solvent
3. high quality metal, sturdy and durable
High end appearance design, simple and beautiful appearance, with high quality metal shell protection, durable and durable life, suitable for indoor and outdoor environment.
FAQ
Q: Are you trading company or manufacturer?
A: We are the factory. Also we can export the goods by ourselves.
Q: How long is your delivery time?
A: Generally we can send out the the goods within 3-7 days if the goods are in stock.
Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,
balance before shipment.
Q: How about the after-sale service?
A: Any feedback or comments are welcomed.
We will try to make the best assistant to let you maximum satisfaction.
